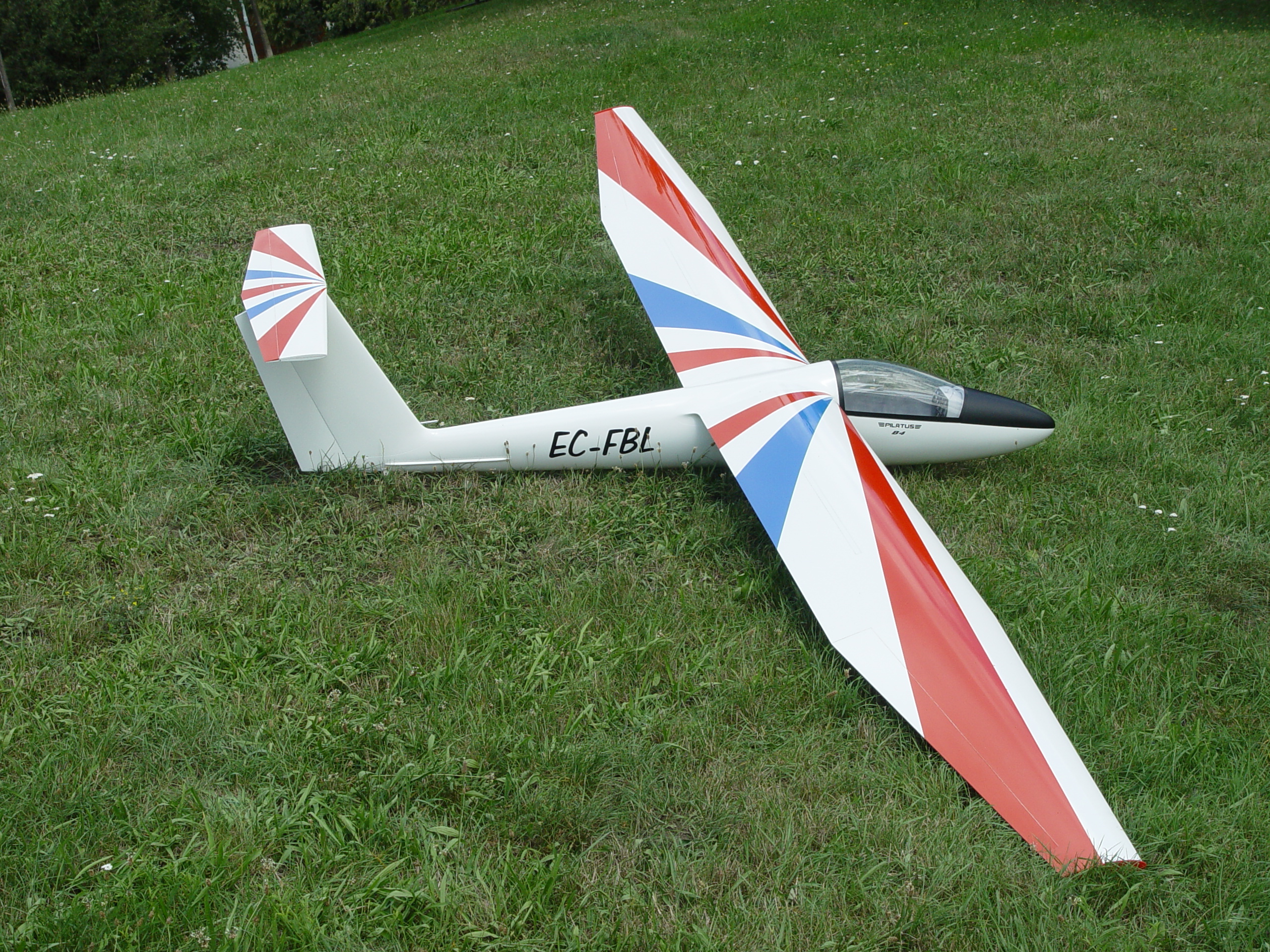

Pilatus B4 4,5m

The moulded Old-timer Pilatus B4 is still very popular amongst the modeling enthusiasts. The popularity lies in its simple and robust construction, which allows for an easy access to the electronics in the fuselage, and in its flying qualities during the thermal and slope soaring, as well as aerobatics.

The fuselage of Pilatus B4 is of a shell construction, consisting of layers of fiberglass. The construction allows the model to absorb a large amount of energy. The cockpit has a moulded seat. If the customer wishes, the cockpit can be custom equipped with seat covers, upholstered side panels, control levers, a control panel, microphone and map. The canopy opens to the side on two hinges, just the way it is in the real plane.

The wing is of a sandwich shell construction, composed of fiberglass and balsa filling. The wing spar is made of fiberglass and Herx sandwich materials. The ailerons are made together with the wing and are suspended on a textile tape. The attachment of the wing to the fuselage is carried out by the extention of the wing spar and secured by a pin, just the way it is in the real sailplane. The strength test revealed that the wing resists a multiple of loading N=20.

The Pilatus B4 is equipped with Schempp-Hirth air brakes, fixed landing gear and an airtow release mechanism. The model has the original true scale sailplane livery applied. If the customer wishes, the colour of the standard decals can be changed or these can be completely custom made.

The scale model Pilatus B4 can be fitted with an Elicker’s 18 inch retractable pylon. The model can have the fuselage adjusted, pre-cut and fixed with a door, i.e., ready for the installation of the retractable unit or, it can have the pylon completely installed by us.

With basic equipment, the Pilatus B4 requires seven (7) servos, i.e., elevator, rudder, ailerons, airbrakes and airtow release mechanism. If modified as an M version, the model requires an additional servo for the retractable pylon.


















Model # Specs Price + 21%VAT
GPPIL Brakes, fixed landing gear, CZK 41848,-
GPPIL  C Brakes, fixed landing gear, airtow release mechanism, custom cockpit CZK 46679,-

The current euro rate is displayed on the main page

Scale: 1:3,3
Wing span: 4 500 mm
Length: 2 000 mm
Wing area: 127,5 dm²
Airfoil: NACA mod.
Loading: 74,5 g/dm²
Weight: approx. 9 500 g
Flying proficiency: Advanced

* For prices of other optional equipment and accessories or to request our wholesale price list and business terms, please
